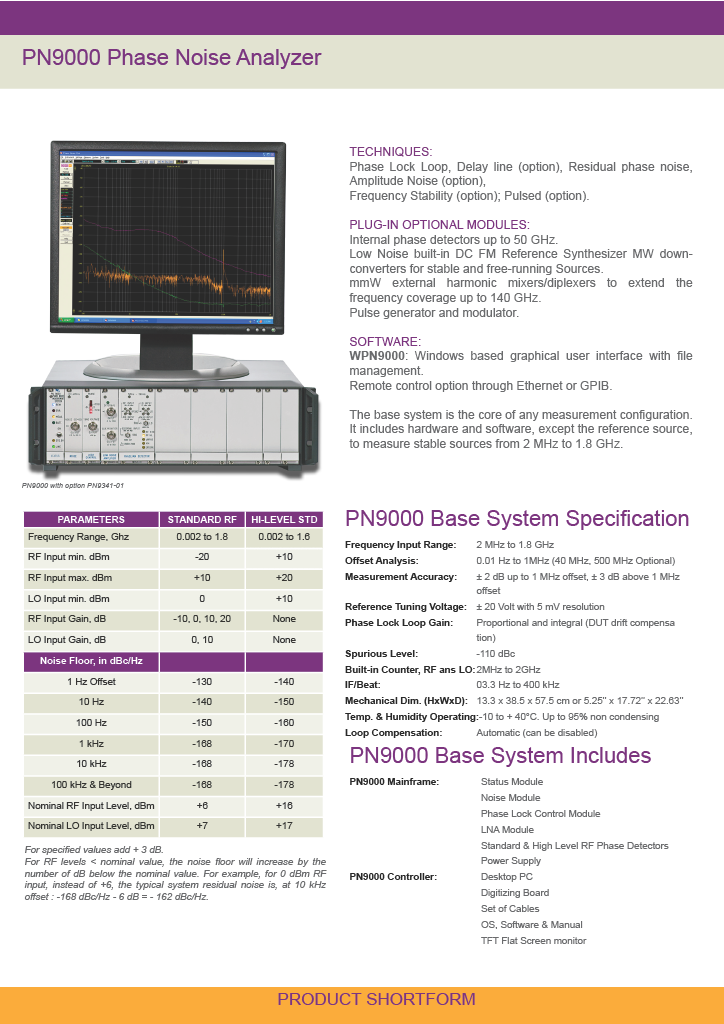

The PN9000 is a simple and fast Automatic Phase Noise Test System covering a very wide frequency range.
Its modular architecture allows optimum configuration, multiple measurement techniques and future growth in a NIST tested instrument.

The best spurious detection accuracy of the industry
All kinds of methods available, the « swiss army knife » for phase noise testing
Pulsed signals or standard CW type
Residual/Additive Phase noise measurements
 Absolute Phase or Amplitude noise measurements
Extensive Jitter and math computation library
Fast ATE type remote control over Ethernet and GPIB
Single channel modular architecture
An affordable solution for simple needs
over 25 years of continuous improvements
Huge number of options and custom capabilities
NIST tested Calibration accuracy

SPECIFICATION
VALUE
RF Input Frequency:
2 MHz to 1.8/26.5/40/50 GHz, options to 140 GHz
Offset analysis:
0.001 Hz to 40 MHz or 500 MHz
Instantaneous resolution BW:
1 mHz to 46 kHz
Accuracy 1 Hz to 1 MHz offset:
+/- 2 dB
Accuracy to 40 MHz offset:
+/- 3 dB
Accuracy to 500 MHz offset:
+/- 5 dB
