The probes are used for directly conducted RF measurement of current and voltage at individual IC pins.
**Please note this set requires Langer ICE1 Test Set**
Link to ICE1: https://www.stratatek.com/product-page/langer-emv-ice1-set-ic-test-environment
Scope of delivery
- 1xP602, RF Current Probe 0.1 Ohm
- 1xP622, RF Current Probe 0.1 Ohm active
- 1xP603, RF Current Probe 1 Ohm
- 1xP623, RF Current Probe 1 Ohm active
- 1xP750, RF Voltage Probe 150 Ohm
- 1xCS-ESA set, ChipScan-ESA Software / USB
- 1xSMA-SMB 1 m, SMA-SMB Measuring Cable
- 1xNT FRI EU, Power Supply Unit
- 1xP600 / P750 acc, Accessories
- 1xP600 / P750 case, System Case
- 1xP600 / P750 m, P600 / P750 Set User Manual
Langer EMV P600 / P750 Probe Set Conducted RF Measurement
Order Info
Please allow 2 - 3 weeks lead time for this new product to arrive.
Made and manufactured in Germany.
Comes with a One Year warranty from the manufacturer.
P603 Probe
The P603 is a 1 ohm probe for direct measurement of high frequency (RF) current at IC pins. It is used to measure at supply pins (Vdd / Vss) and signal pins. The 1 ohm RF current probe has a pin contact with which IC pins can be separately contacted and measured.
Technical parameters
Frequency range 9 kHz ... 3 GHz Coupling capacity 8 µF Measuring output 50 Ω, SMB Transfer factor voltage -6 dB Ammeter /current probe Shunt 1 Ω Current correction factor R -6 dBΩ Inductance 1 nH Max. power dissipation 2.5 W P750 RF Voltage Probe 150 Ohm
The P750 RF voltage probe corresponds to a 150 ohm coupling network according to IEC 61967-4 for the RF voltage measurement at IC pins. The P750 probe has of a high resistance, capacitive coupled input. RF voltages can be measured at different pins of the device under test.
Technical parameters
Frequency range 150 kHz ... 3 GHz Input resistance 150 Ω Measuring output 50 Ω, SMB Transfer factor voltage -15.2 dB Max. input voltage DC 50 V Max. input voltage RF 3.5 V P602 Probe
The P602 is a 0.1 ohm probe for direct measurement of high frequency (RF) current at IC pins. The measurement error, which is due to the very small resistance, is lower in comparison to P603. It is used to measure supply pins (Vdd / Vss) and signal pins.
The 0.1 ohm RF current probe has a pin contact with which IC pins can be separately contacted and measured.
Technical parameters
Frequency range 9 kHz ... 3 GHz Coupling capacity 8 µF Measuring output 50 Ω, SMB Transfer factor voltage -6 dB Ammeter /current probe Shunt 0.1 Ω Current correction factor R -26 dBΩ Inductance 1 nH Max. power dissipation 2.5 W P622 Probe
The P622 is a 0.1 ohm probe with an integrated preamplifier for direct measurement of high frequency (RF) current at IC pins. The measurement error, which is due to the very small resistance, is lower compared to P603. It is designed to measure supply pins (Vdd / Vss) and signal pins.
Technical parameters
Frequency range 9 kHz ... 3 GHz Coupling capacity 8 µF Transfer factor voltage 20 dB Ammeter /current probe -1 dB compression point 120 dBµV IP3 134 dBµV Measurement output 50 Ω, SMB Noise figure 3.7 dB Shunt 0.1 Ω Current correction factor R 0 dBΩ Inductance 1 nH Supply voltage 12 V / DC Max. power dissipation 2.5 W P623 Probe

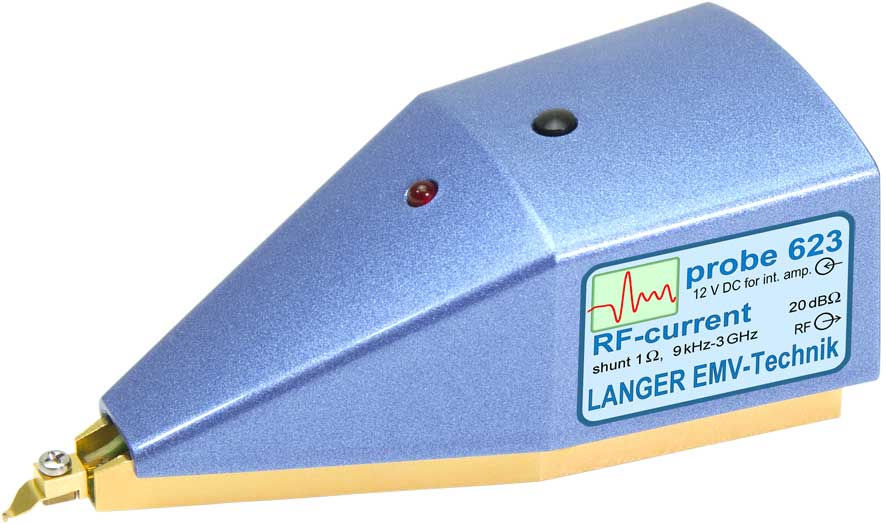

The P623 is a 1 ohm probe for direct measurement of high frequency (RF) current at IC pins. It is used to measure at supply pins (Vdd / Vss) and signal pins. The 1 ohm RF current probe has a pin contact with which IC pins can be separately contacted and measured.
Technical parameters
Frequency range 9 kHz ... 3 GHz Coupling capacity 8 µF Transfer factor voltage 20 dB Ammeter /current probe -1 dB compression point 120 dBµV IP3 134 dBµV Measurement output 50 Ω, SMB Noise figure 3.7 dB Shunt 1 Ω Current correction factor R 20 dBΩ Inductance 1 nH Supply voltage 12 V / DC Max. power dissipation 2.5 W
